Angle

Features

Various grades are available other than 304.
Advanced corrosion resistance and machinability are achieved by optimum control of chemical components and heat treatment.
Hairline polished products(standard＃240) are available. Please ask us about other surface-treated products
Available of inch-size and inequilateral angle products.

Applications

Chemical machinery, medical apparatus, nuclear application, environmental machinery, industrial machinery, kitchen instrument, architectural material and etc.

Available Size (by inch)

		Thickness（in）
		1/8	3/16	1/4	5/16	3/8	1/2
Width (in)	3/4	.603	.833
	1	.813	1.16	1.49
	1 1/4	1.03	1.49	1.92
	1 1/2	1.25	1.81	2.35	2.83
	2	1.71	2.49	3.23	3.93	4.64
	2 1/2		3.16	4.13	5.04	5.97
	3			4.99	6.11	7.26	9.41
	4			6.79	8.27	9.88	13.0

Numbers in below table show lbs/ft of SUS304.

Dimensional tolerance Tolerances of thickness and side of equal side angle (mm)

			Thickness(mm)
			3	4	5	6	7	8	9	10
Width (mm)	20	±1.0	±0.4	±0.4
	25		±0.5	±0.5	±0.5	±0.5
	30		±0.5	±0.5	±0.5	±0.5
	35		±0.6	±0.6	±0.6	±0.6
	40		±0.6	±0.6	±0.6	±0.6	±0.6
	45	±2.0	±0.6	±0.6	±0.6	±0.6	±0.6
	50	±2.0	±0.6	±0.6	±0.6	±0.6	±0.6	±0.6	±0.6
	60	±3.0			±0.6	±0.6	±0.7	±0.7	±0.7
	65				±0.6	±0.6	±0.7	±0.7	±0.7
	70					±0.6	±0.7	±0.7
	75					±0.6	±0.7	±0.7	±0.7
	80					±0.6	±0.7	±0.7	±0.7
	90					±0.6	±0.7	±0.7	±0.7	±0.7
	100					±0.6	±0.7	±0.7	±0.7	±0.7

Squareness ： 90°±2°
Warpage ： ≦3mm/1m length.
Length ： +40,-0mm

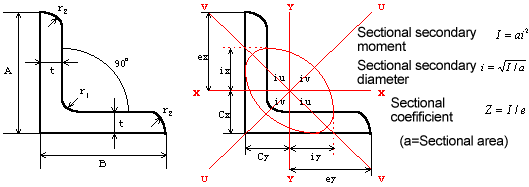

Sectional form and sectional characteristics

Standard section Size (mm)				Sectional area (cm2)	Position of center of gravity (cm)	Sectional secondary moment (cm4)			Sectional secondary diameter (cm)			Sectional coefificient (cm3)
A×B	t	r1	r2	a	Cx=Cy	Ix=Iy	MaxIu	MinIv	ix=iy	Maxiu	Miniv	Zx=Zy
20×20	3	4	2	1.127	0.60	0.39	0.61	0.16	0.59	0.74	0.38	0.28
25×25	3	4	2	1.427	0.72	0.80	1.26	0.33	0.75	0.94	0.48	0.45
30×30	3	4	2	1.727	0.84	1.42	2.26	0.59	0.91	1.14	0.58	0.66
30×30	4	4	3	2.236	0.88	1.77	2.81	0.74	0.89	1.12	0.57	0.84
30×30	5	4	3	2.746	0.92	2.14	3.37	0.91	0.88	1.11	0.57	1.03
30×30	6	4	4	3.206	0.94	2.41	3.79	1.04	0.87	1.09	0.57	1.17
40×40	3	4.5	2	2.336	1.09	3.53	5.60	1.46	1.23	1.55	0.79	1.21
40×40	4	4.5	3	3.045	1.12	4.46	7.09	1.84	1.21	1.53	0.78	1.55
40×40	5	4.5	3	3.755	1.17	5.42	8.59	2.25	1.20	1.51	0.77	1.91
40×40	6	4.5	4	4.415	1.20	6.19	9.79	2.58	1.18	1.49	0.76	2.21
50×50	4	6.5	3	3.892	1.37	9.06	14.4	3.76	1.53	1.92	0.98	2.49
50×50	5	6.5	3	4.802	1.41	11.1	17.5	4.58	1.52	1.91	0.98	3.08
50×50	6	6.5	4.5	5.644	1.44	12.6	20.0	5.20	1.50	1.88	0.96	3.55
60×60	6	6.5	4	6.862	1.69	22.8	36.1	9.40	1.82	2.29	1.17	5.29
65×65	6	8.5	4	7.527	1.81	29.4	46.6	12.2	1.98	2.49	1.27	6.26
65×65	8	8.5	6	9.761	1.88	36.8	58.3	15.3	1.94	2.44	1.25	7.96
70×70	7	8.5	5	9.358	1.97	41.5	65.7	17.3	2.11	2.65	1.36	8.25
75×75	6	8.5	4	8.727	2.06	46.1	73.2	19.0	2.30	2.90	1.48	8.47
75×75	9	8.5	6	12.69	2.17	64.4	102	26.7	2.25	2.84	1.45	12.1
80×80	8	8.5	6	12.16	2.25	71.2	113	29.3	2.42	3.05	1.55	12.4
90×90	9	10	6	15.45	2.54	114	183	44.4	2.72	3.44	1.70	17.6
100×100	8	10	6	15.42	2.75	145	230	59.3	3.07	3.86	1.96	20.0
100×100	10	10	7	19.00	2.82	175	278	72.0	3.04	3.83	1.95	24.4
