Stainless Steel Powder for Sintering
Stainless steel powder with corrosion resistance Suitable for compacting·sintering process
Features
- A wide variety of stainless steel lineup
- Optimal powder shape, particle distribution for compaction-sintering process
- Attaining qualitative stabilities by utilization of special control technology
- The use of primarily refined raw materials with low carbon and nitrogen from the melting shop offers good compactionability without annealing process.
- Powders with pre-mixed lubricants are also available
Main applications
- ABS sensor
- Camshaft lobe
- Camera parts
- Lock parts
- Medical equipment parts
- Valve guide

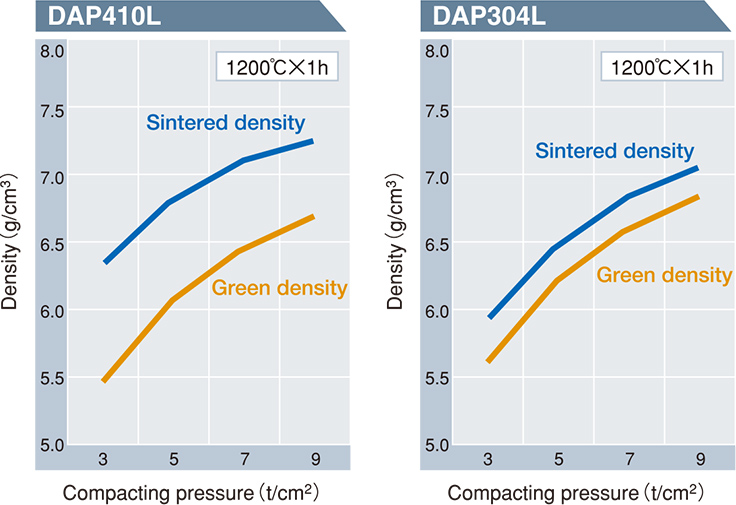

Powder Properties

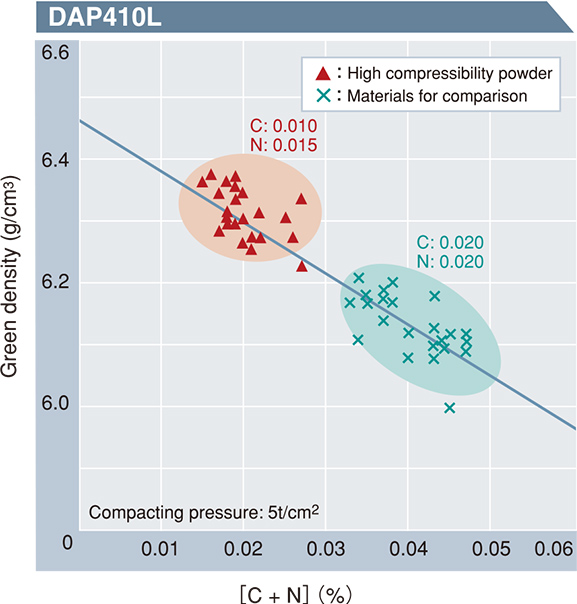

Property of high compressibility powder

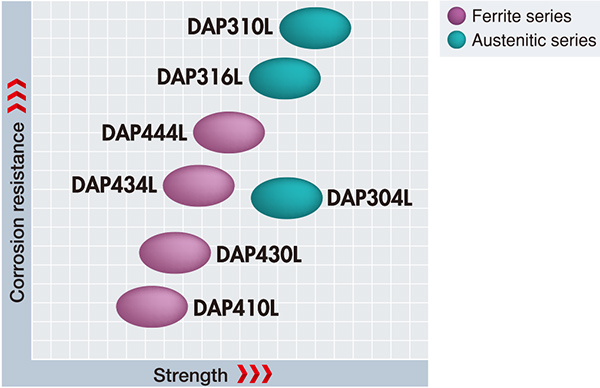

Main powder products
| Material | Chemical Composition (mass%) | Powder Properties | ||||||||
| C | Ni | Cr | Mo | AD(g/cm3) | FR(s/50g) | GD(g/cm3) | RV(%) | |||
| DAP304L | 0.02 | 11.0 | 19.0 | 2.6 | 28.0 | 6.3 | 2.5 | |||
| DAP304L-U | 0.02 | 11.0 | 19.0 | Cu4.0 | Sn0.7 | 2.7 | 25.0 | 6.4 | 2.5 | |
| DAP316L | 0.02 | 13.0 | 17.0 | 2.5 | 2.6 | 27.0 | 6.4 | 2.0 | ||
| DAP316LU | 0.02 | 13.0 | 17.0 | 2.5 | Cu2.0 | Sn0.7 | 2.7 | 27.0 | 6.4 | 2.0 |
| DAP310L | 20.5 | 25.0 | 2.6 | 24.0 | 6.4 | 2.0 | ||||
| DAP410L | 0.02 | 12.5 | 2.6 | 28.0 | 6.2 | 2.5 | ||||
| DAP430L | 0.02 | 17.0 | 2.6 | 30.0 | 6.1 | 2.5 | ||||
| DAP434L | 0.02 | 17.0 | 1.0 | 2.6 | 28.0 | 6.0 | 2.5 | |||
| DAP444L | 0.02 | 18.0 | 2.0 | 2.6 | 28.0 | 6.0 | 3.0 | |||
Compacting pressure :5t/cm2
※Different type of chemical compositions is also available
※Unless "Bal" is specified on the table, metal type is Fe-base alloy basically
※High Compressible Steinless (usable lor various materialss)
