Features
-
The metal foils with high magnetic permeability material (MEN® PC-2S) for high-sensitivity applications and high-saturation magnetic flux density material (DF42N) for strong magnetic field applications.
【Corresponding frequency band】
To the complex relative permeability showing the magnetic field sensitivity of STARPAS®-PC2S
To the saturation magnetic flux density showing the magnetic field strength of STARPAS®-DF42N - High frequency characteristics by suppressing eddy current loss inside the magnetic material with foil.
- Excellent workability such as bending, cutting, stamping, etc., and high durability against vibration and high temperature environments in automotive applications.
- Also available as products with laminate and tape.
Main application examples
Magnetic shield for sensors and cables and to reduce the noise.
CMOS image sensors
Power and control ICs
FPC and wire harness
Smart home appliances
Wireless power supply
Product Specifications
For high sensitivity (Applicable to signal system shields less than a few 10 A/m)
| Product | Material | Thickness | MOQ Length/Weight |
Width | Max. length | Frequency | |
|---|---|---|---|---|---|---|---|
| STARPAS®-10PC2S | MEN®PC-2S | 10µm | 100m | 0.9kg | 100mm | Less than 1100m | More than 50kHz |
| STARPAS®-20PC2S | 20µm | 1.8kg | Less than 1100m | ||||
| STARPAS®-30PC2S | 30µm | 2.7kg | Less than 1900m | ||||
For strong magnetic field (Applicable to power shields more than a few 10 A/m)
| Product | Material | Thickness | MOQ Length/Weight |
Width | Max. length | Frequency | |
|---|---|---|---|---|---|---|---|
| STARPAS®-10DF42N | DF42N | 10µm | 100m | 0.8kg | 100mm | Less than 1100m | More than 50kHz |
| STARPAS®-20DF42N | 20µm | 1.6kg | Less than 1100m | ||||
| STARPAS®-30DF42N | 30µm | 2.4kg | Less than 1900m | ||||
Main magnetic characteristics examples
Complex relative permeability
Product with a thickness of 10μm is the most suitable for high-frequency applications. However, it is also possible to increase the magnetic shielding effect by the foil thickness, so the thickness can be selected according to the intensity of the adaptive magnetic field.
DC characteristics(Reference)
| Product | Initial permeability(μi) | Max. permeability(μm) | Magnetic flux density at 800A/m | Coercive force | |
|---|---|---|---|---|---|
| For high sensitivity | STARPAS®-10PC2S | 5,800 | 36,000 | 0.72 | 9 |
| STARPAS®-20PC2S | 6,400 | 34,000 | 10 | ||
| STARPAS®-30PC2S | 6,400 | 30,000 | 10 | ||
| For strong magnetic field | STARPAS®-10DF42N | 1,300 | 6,400 | 1.42 | 60 |
| STARPAS®-20DF42N | 2,000 | 10,800 | 50 | ||
| STARPAS®-30DF42N | 1,700 | 9,400 | 50 |

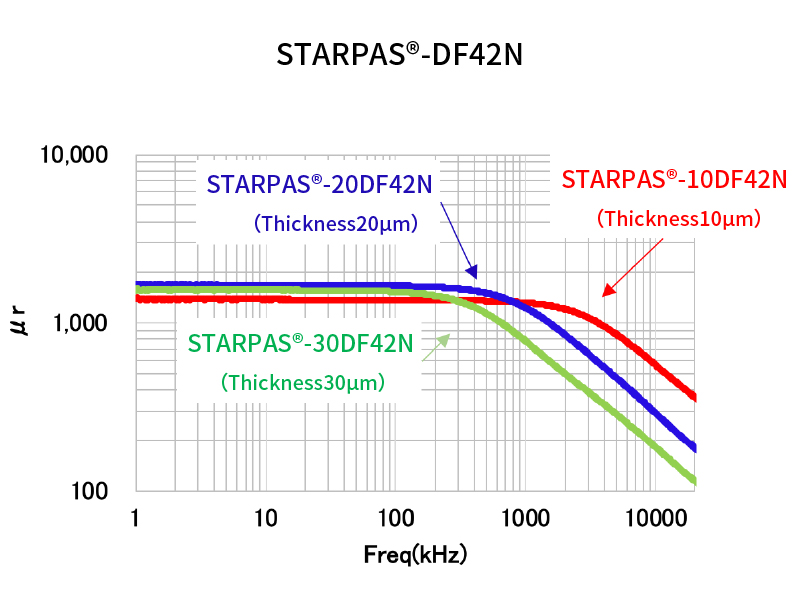

Complex relative permeability μr depending on frequency
| Product | 1kHz | 100kHz | 1MHz | 10MHz | |
|---|---|---|---|---|---|
| For high sensitivity | STARPAS®-10PC2S | 5,300 | 5,200 | 3,500 | 700 |
| STARPAS®-20PC2S | 5,400 | 5,000 | 2,000 | 430 | |
| STARPAS®-30PC2S | 6,000 | 4,800 | 1,400 | 340 | |
| For strong magnetic field | STARPAS®-10DF42N | 1,400 | 1,400 | 1,300 | 560 |
| STARPAS®-20DF42N | 1,700 | 1,700 | 1,200 | 290 | |
| STARPAS®-30DF42N | 1,600 | 1,500 | 800 | 180 |

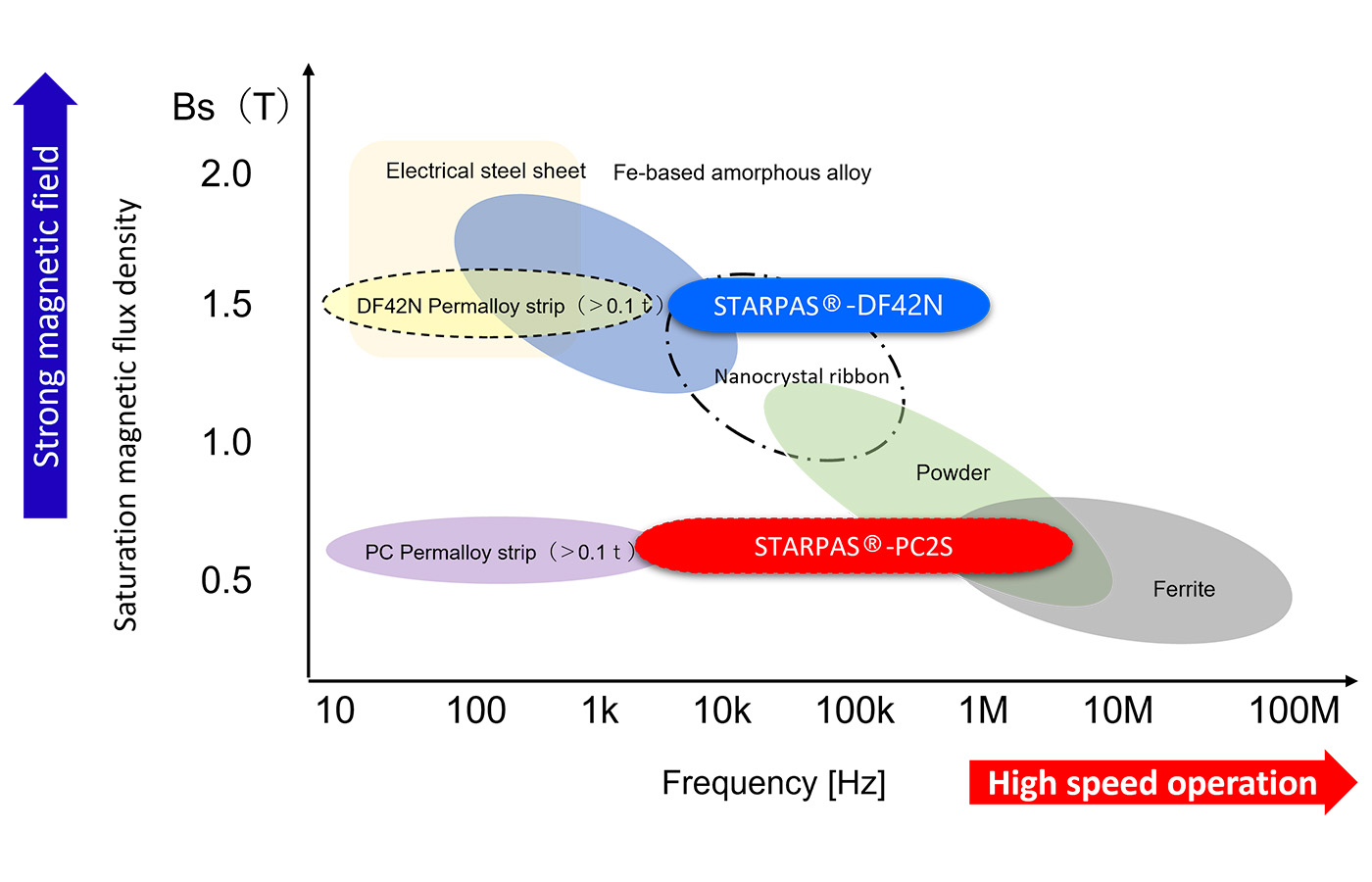

Applicable frequency band of permalloy foil material
STARPAS®-PC2S is suitable for high-sensitivity applications.

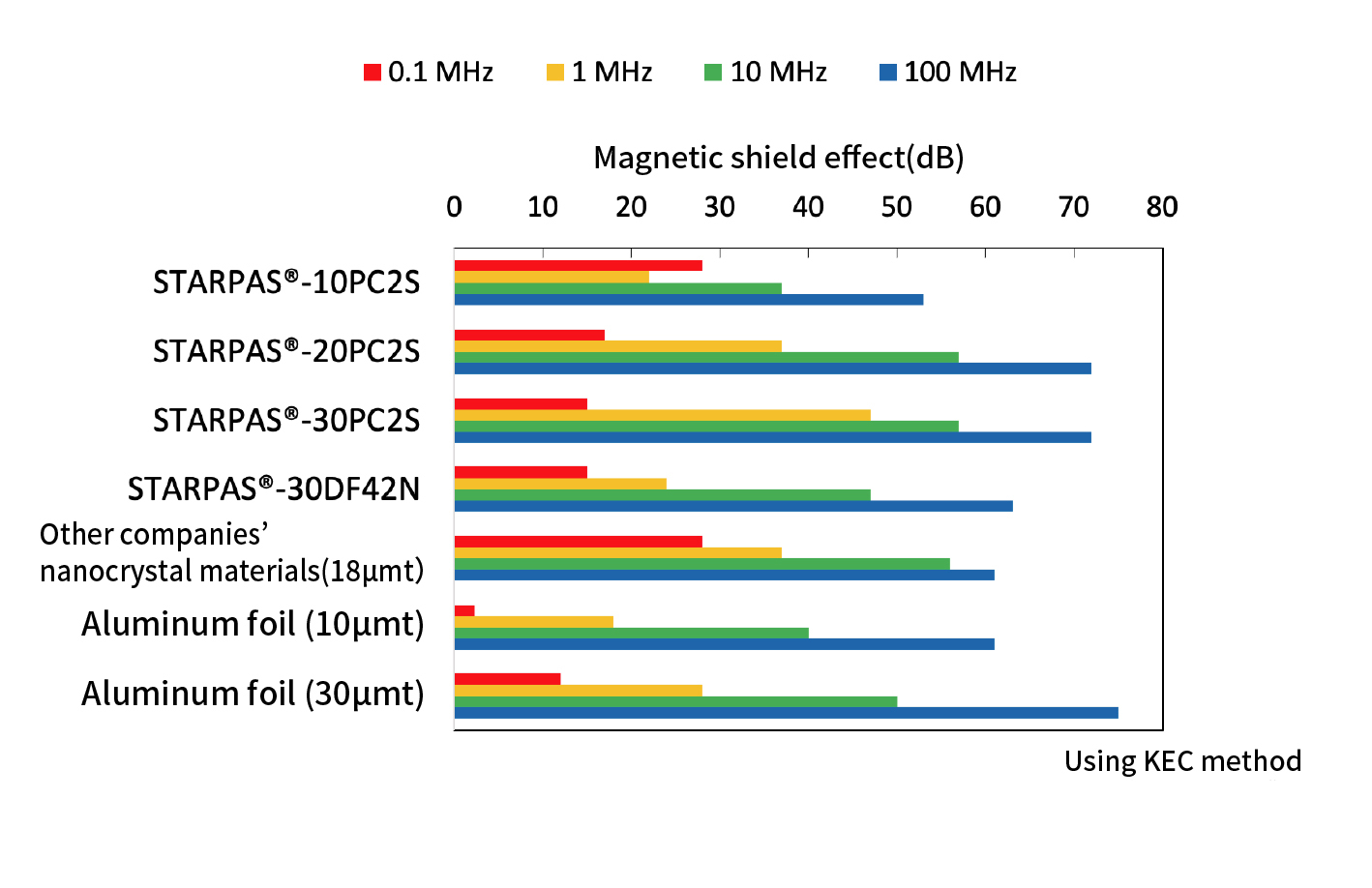

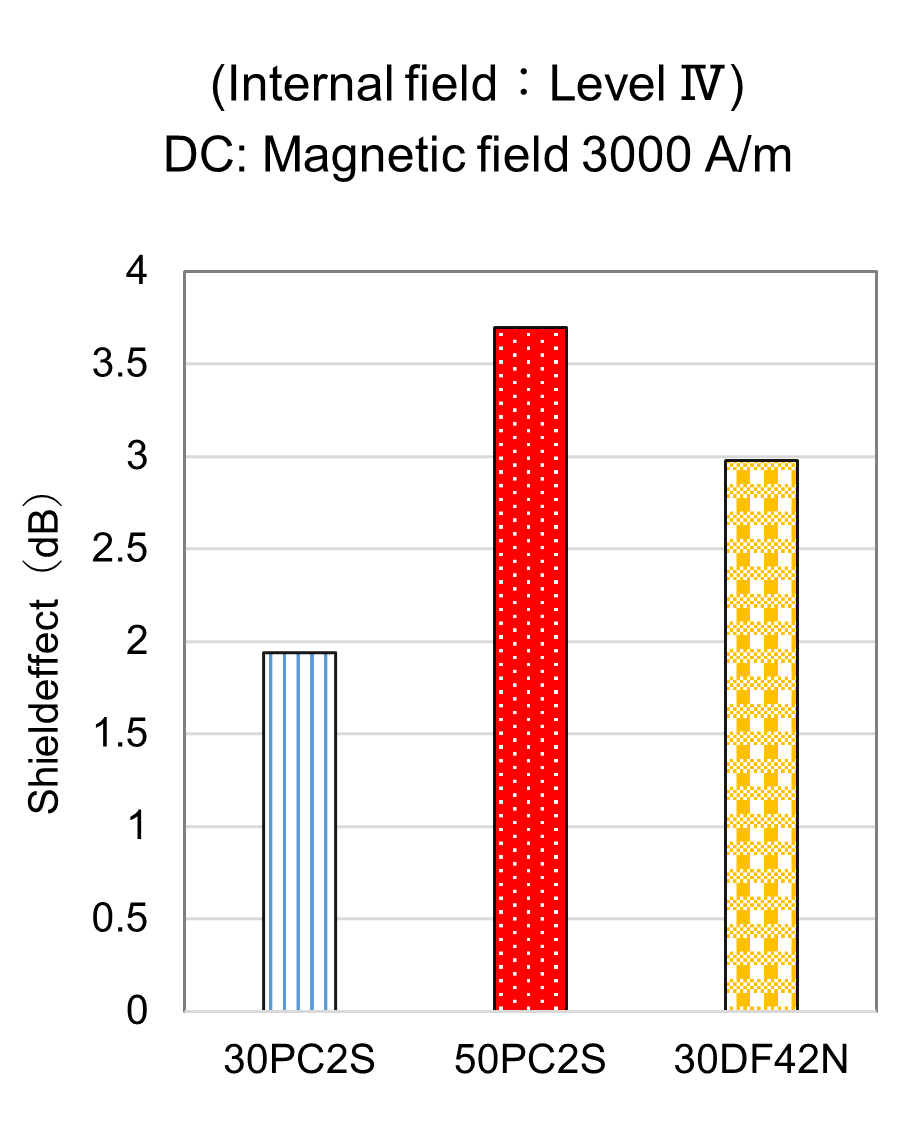

Magnetic shield performance at high frequencies

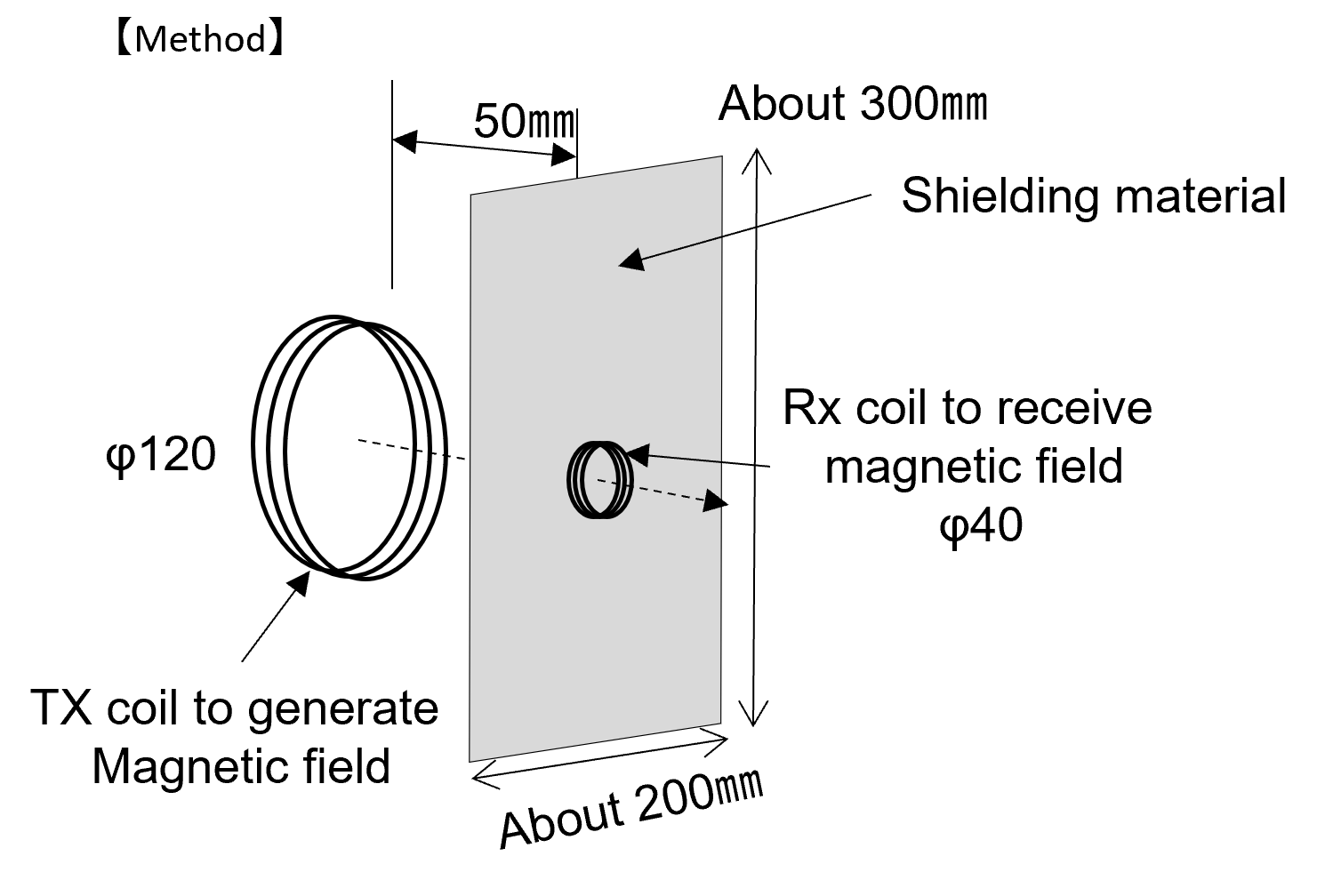

It shows a high shield property unlike aluminum (non-magnetic) at 1MHz. It also functions as an electromagnetic wave shield even at high frequencies.
We provide the magnetic shield and yoke material in 50 kHz ～ 10MHz band.
STARPAS®-PC2S is suitable for strong magnetic field applications.

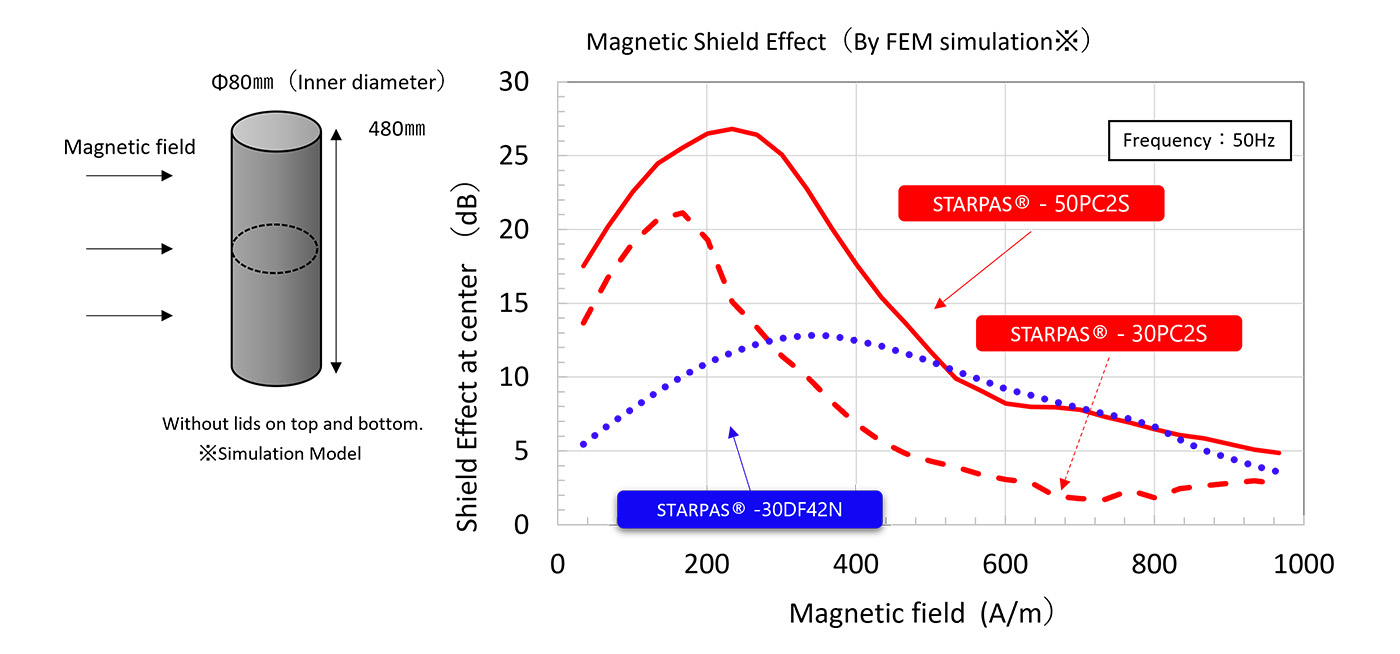

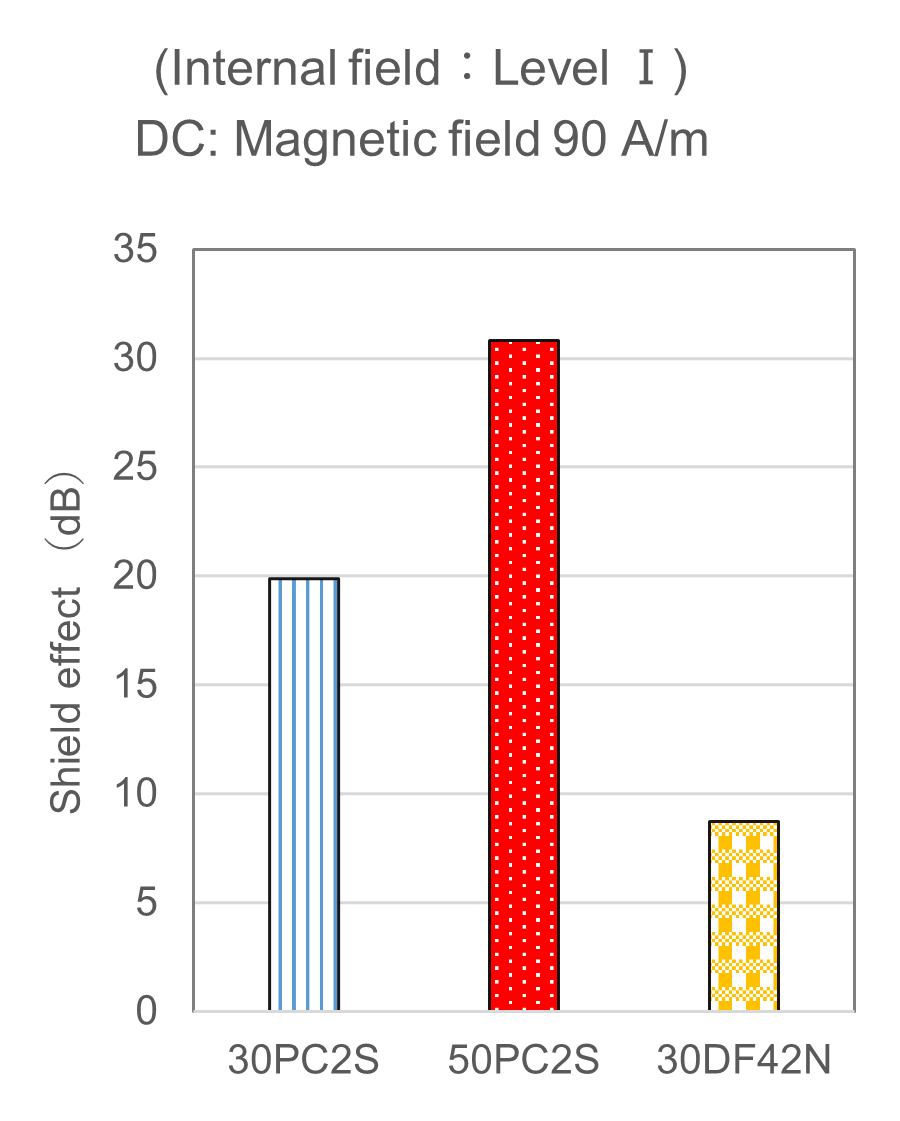

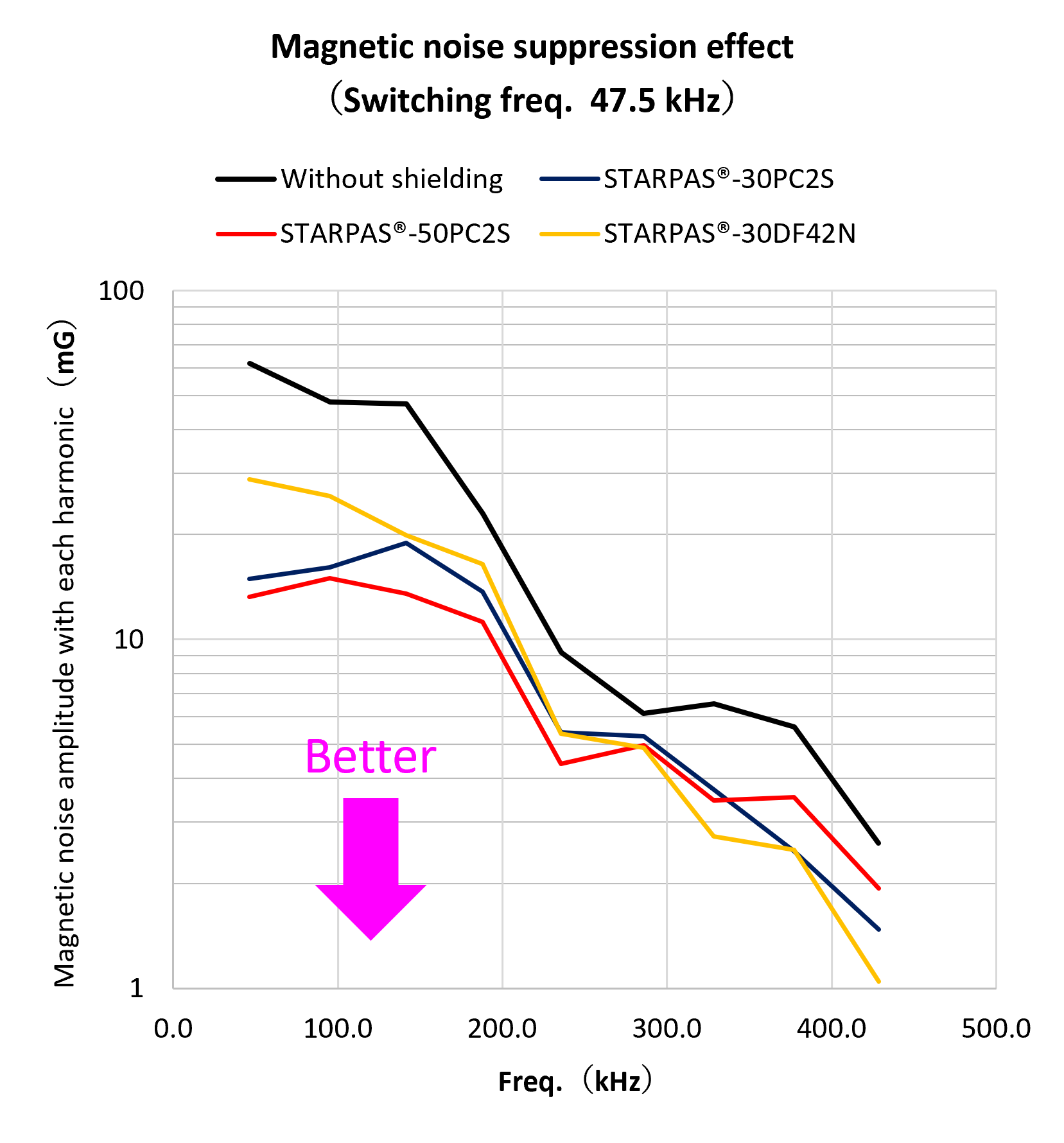

Magnetic shield performance depending on magnetic field strength
STARPAS®-PC2S shows high shield performance in a weak magnetic field. STARPAS®-DF42N maintains high shield performance in strong magnetic field.
We provide highly efficient magnetic yoke materials (Sheet for wireless power supply)
Easy-to-handle material performance
Our materials are so flexible with excellent processability that your applications are expanded.
Lineup of products with tape and laminate
We have a lineup of adhesive tapes and laminated products on high-frequency sheet metal foil (metal foil) to improve usability.
| Classification | Materials | Product Name | Specifications |
|---|---|---|---|
| With tape | MEN®PC-2S | STARPAS®-T-10/20/30PC2S | Width100mm metal foil / tape(10μmt) |
| DF42N | STARPAS®-T-10/20/30DF42N | ||
| Laminate (Single layer) |
MEN®PC-2S | STARPAS®-T-10/20/30PC2S | Width100mm(Effective 95mm) PET(30μm) /Metal foil/ tape(10μmt) |
| DF42N | STARPAS®-T-10/20/30DF42N | ||
| Laminate (Multi layers) |
MEN®PB、DF42N | STARPAS®-L-10PB10DF42N | Individual specifications |
| MEN®PC-2S | STARPAS®-L-10PC2S10PC2 |
Appearance example

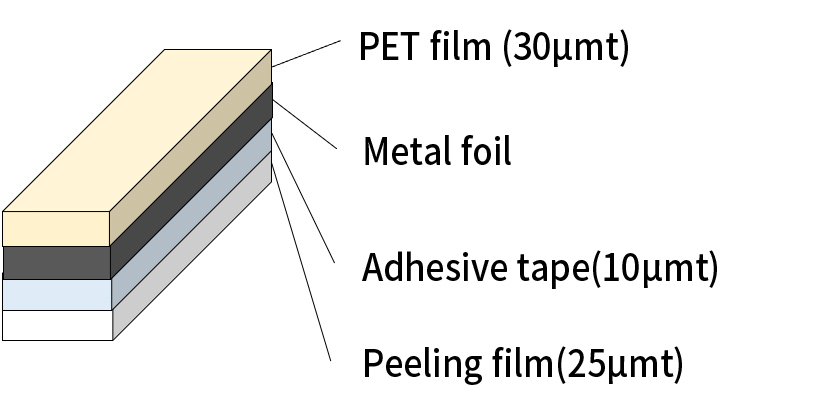

Configuration example with PET film
