Hot Stamping Die Steel

Daido Steel's tool steels lineup for hot stamping dies includes H13 and other special grades that can provide excellent high-temperature strength, softening resistance and thermal conductivity. High thermal conductive grades contribute to the improvement of the internal cooling efficiency.
Our products contribute to the prevention of wear, plating adhesion and other issues that may happen in hot stamping where forming and cooling happen at the same time.

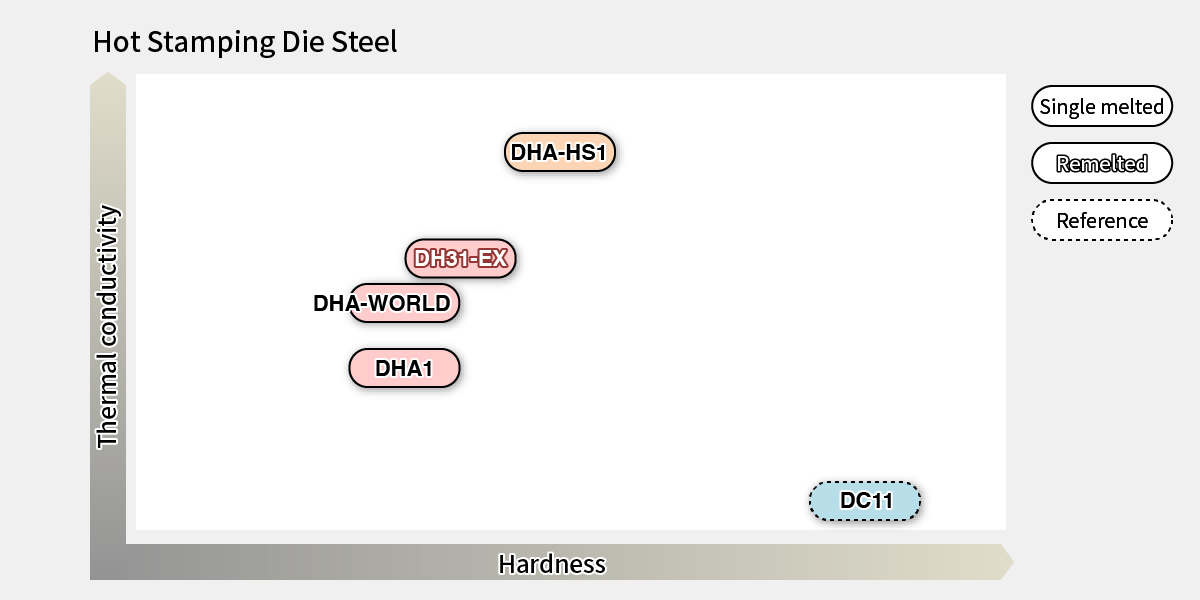

Conceptual diagram of Hot Stamping Die Steel Properties

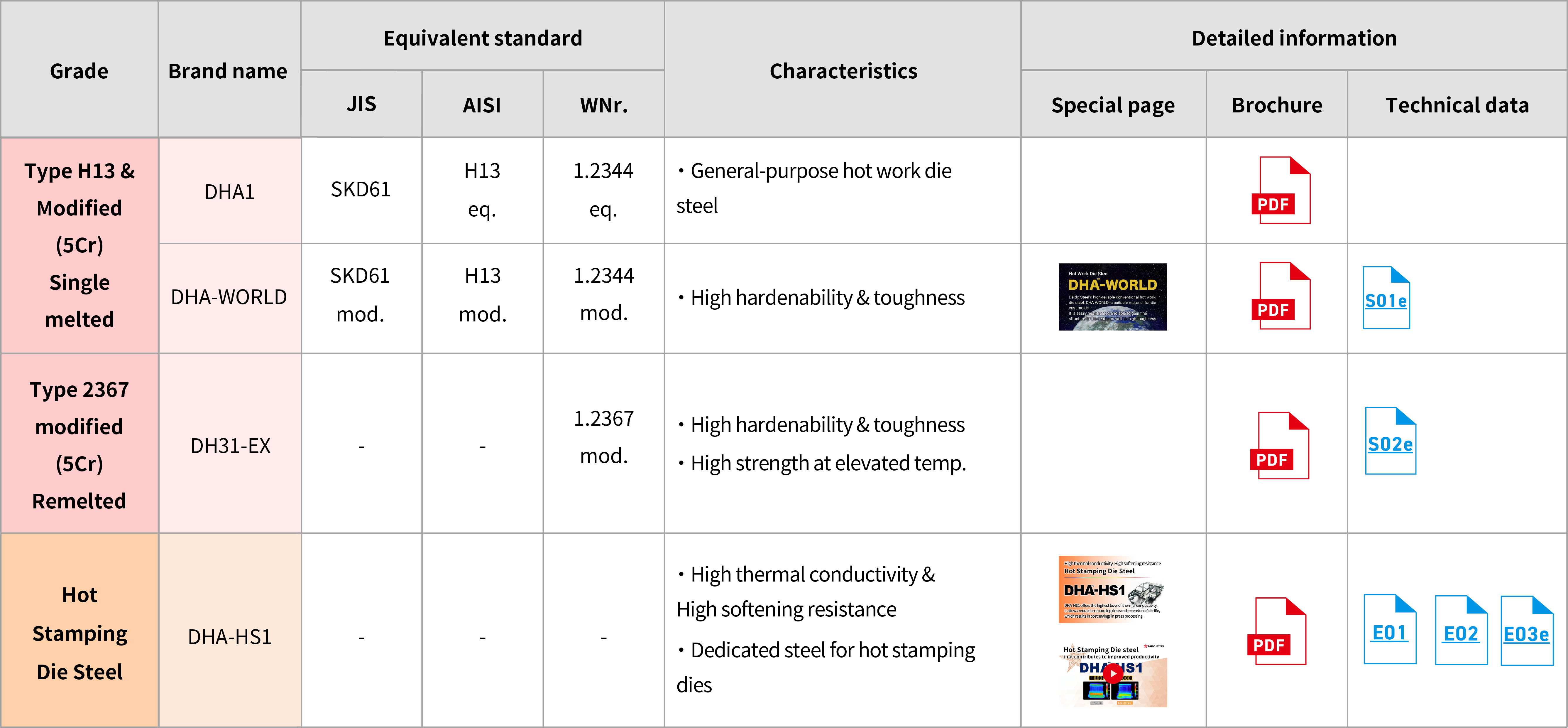

Products list

	Brand name	Characteristic	Brochure
	Brand name	Hot Work Tool Steel	Brochure	DHA-WORLD	AISI H11 (1.2343) mod. High hardenability & toughness	1,410KB
DHA1	AISI H13 (1.2344) General-purpose steel		1,553KB
DH31-EX	High hardenability & toughness High strength at elevated temp.		957KB
Hot Stamping Die Steel	DHA-HS1	High thermal conductivity & High softening resistance Dedicated steel for hot stamping dies	1,234KB

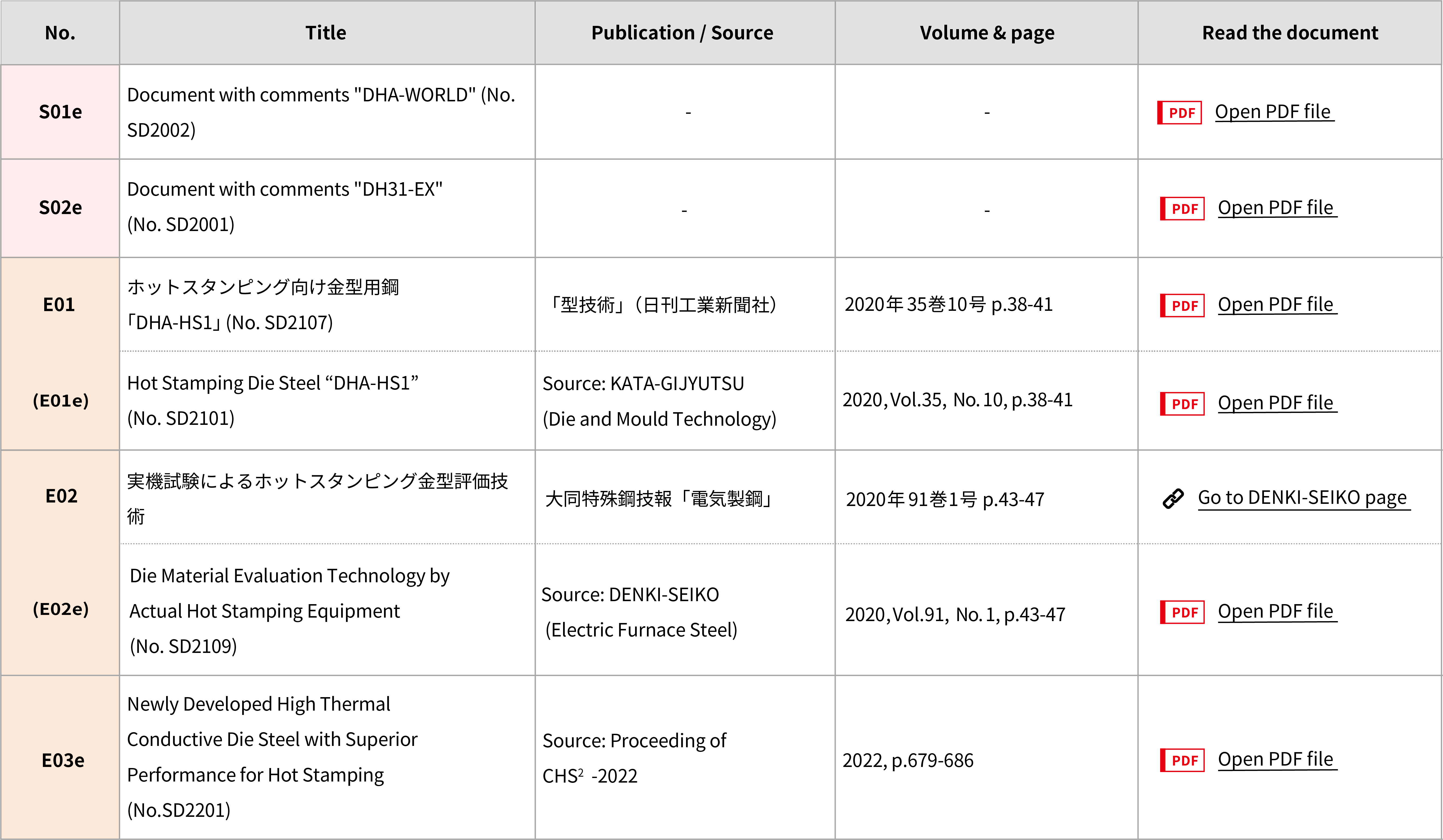

Technical Data

Naoki Umemori: “Hot Stamping Die Steel DHA-HS1” (No. SD2101) (1,109KB)

Source: KATA-GIJYUTSU (Die and Mould Technology), 2020, Vol.35, No.10, p.38-41

Naoki Umemori : “Die Material Evaluation Technology by Actual Hot Stamping Equipment” (No. SD2109) (1,156KB)

Source: DENKI-SEIKO (Electric Furnace Steel), vol. 91 (2020), No.1, p. 43-47
